Volvo Penta Boat Glass Cockpit Display 23316609 | A7xs 7 Inch Grab Now

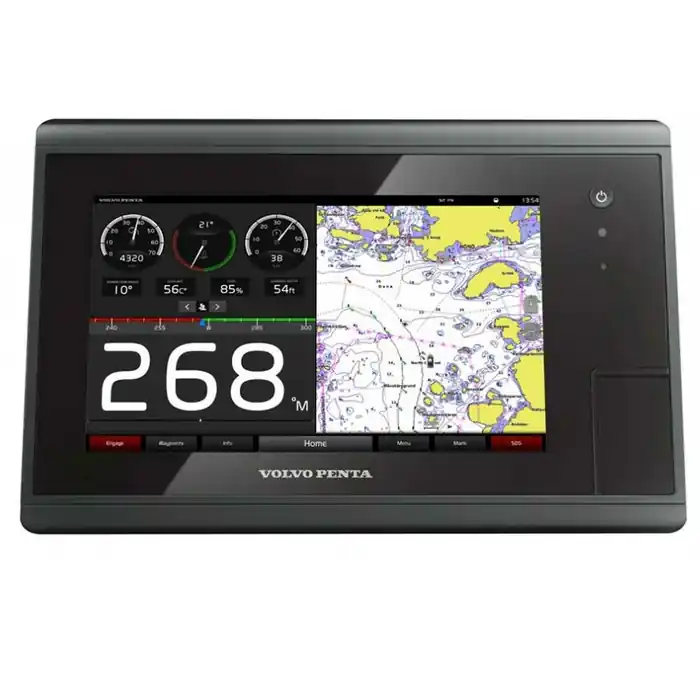

Boat part number 1115272 is a new 7″ glass cockpit display from Volvo Penta, part number 23316609. Commonly used on Crownline boats, but may be used on other boats.

Included Items:

• 7″ MFD A7xs | 23316613
• Power Cable | 23316641
• Display G4 Cable | 21640400
• Top Mount Connector | 21812195
• Nmea 2000 cable | 21812194
• Sun Cover | 23316637
• Installation Hardware

This glass cockpit display has a glass multitouch display with a plastic housing and a Garmin GPSMAP A7xs system with detailed US maps built in. It measures approximately 8 3/4″ W x 6 5/8″ H x 2″ D overall. Mounts with (4) 1/8″ Dia. holes set apart 5 1/8″ center to center and (2) 3/16″ Dia. threaded holes.

Connections:

• J1939 | 5-Pin
• NMEA 2000 | 5-Pin
• CVBS IN | 1-Pin female
• Network | Ethernet
• XDCR | 8-Pin
• Power | 8-Pin

Specifications:

• Boat Manufacturer: Crownline
• Part Number: Unavailable
• Part Manufacturer: Volvo Penta
• Part Number: 23316609
• Material: Glass / Plastic
• Color: Black
• Finish: Matte
• Overall Dimensions: 8 3/4″ W x 6 5/8″ H x 2″ D
• Mounts: (4) 1/8″ Dia. holes set apart 5 1/8″ CTC / (2) 3/16″ Dia. threaded holes
