Viral Chaparral Boat Multifunction Gauge 780914SDFB | 3 1/4 Inch Teleflex

Boat part number 1107324 is a new Chaparral multifunction gauge from Teleflex, part number 780914SDFB .

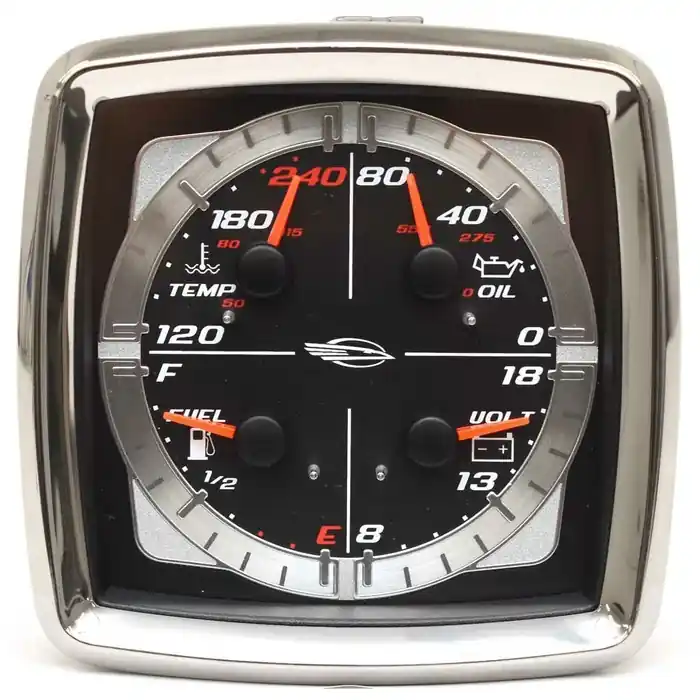

This electronically illuminated gauge features a flat lens, silver and black colored face, silver colored bezel, red and white lettering and numerals, with silver colored accents, red needles, and the Chaparral logo.

This gauge uses the following functions:

• 120-240 Degree F Temperature
• 80 PSI Oil Pressure
• Fuel Level
• 8-18 Voltage

Measures approximately 3 3/4″ L x 3 3/4″ W (including bezel) x 3 1/2″ D overall. Requires an approximate 3 1/4″ L x 3 1/4″ W cutout. Hosts (4) threaded bolt, (1) 4-pin male Deutsch, and (1) 4-pin female Deutsch connections. Calibrated to an industry standard of 33-240 Ohms.

Mounting bracket included.

Specifications:

• Boat Manufacturer: Chaparral Boats
• Part Manufacturer: Teleflex
• Part Number: 780914SDFB
• Colors: Silver and Black (Face) | Silver (Bezel)
• Calibration: 33-240 Ohms
• Overall Dimensions: 3 3/4″ L x 3 3/4″ W x 3 1/2″ D
• Cutout: 3 1/4″ L x 3 1/4″ W
• Connections: (4) Threaded Bolt | (1) 4-Pin Male Deutsch | (1) 4-Pin Female Deutsch
