Seasonal Sale Cobalt Boat Trim Gauge 414836SR | Medallion 3 3/8 Inch Digital

Boat part number 1115072 is a new trim gauge from Cobalt boats, part number 414836SR . Manufactured by Medallion, part number 8630-00161-00 .

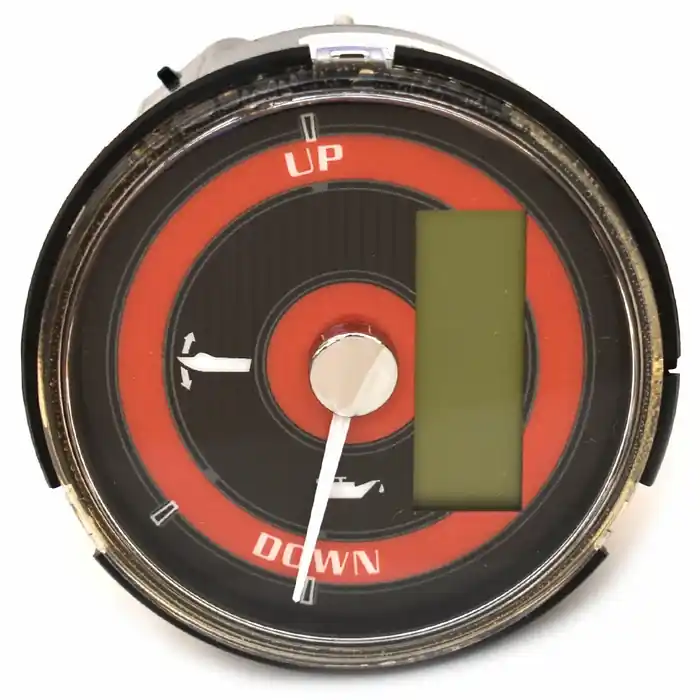

This electronically illuminated gauge features a slightly domed lens, gray pinstripe and red face, white lettering, and accents, with a white needle and digital window.

Measures approximately 3 5/8″ Dia. across the face x 3″ D overall. Requires an approximate 3 3/8″ Dia. cutout. Hosts (1) 4-pin male Metri connections.
Mounting bracket and bezel NOT included.

Tag reads: 3″ SLCD Trim Cobalt Red

Note: Per the manufacturer; this gauge is designed to be driven by a tachometer which receives trim information from the engine via Mercury SmartCraft or NMEA2000 CAN bus system.
The trim gauge cannot be used independent of the master interface tachometer gauge.

Specifications:

• Boat Manufacturer: Cobalt
• Year / Model: Unavailable
• Part Number: 414836SR
• Part Manufacturer: Medallion
• Part Number: 8630-00161-00
• Colors: Gray Pinstripe | Red
• Overall Dimensions: 3 5/8″ Dia. x 3″ D
• Cutout: 3 3/8″ Dia.
• Connections: (1) 4-Pin Male Metri
