Same Day Shipping Four Winns Boat Gauge Set | Faria Mercury Inboard Silver Black (5PC)

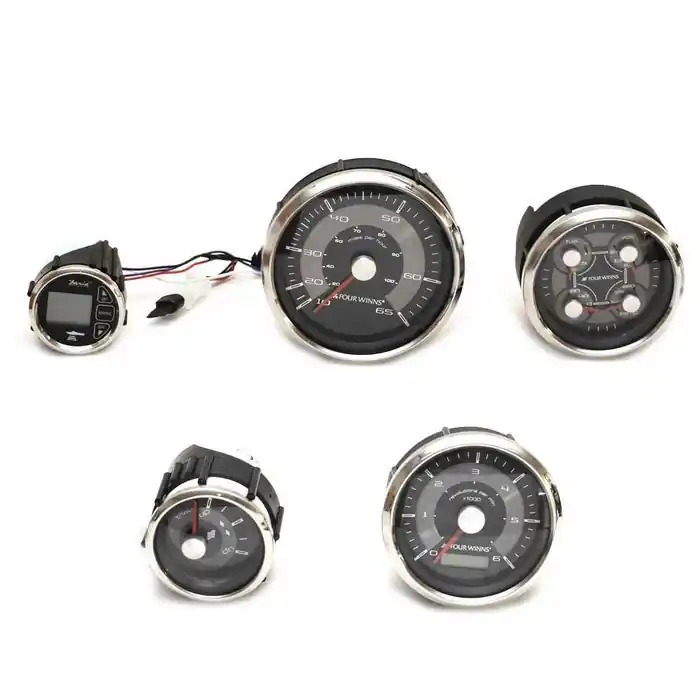

Boat part number 1109569 is a new 5-piece gauge set for Four Winns Boats. Manufactured by Faria.

Set includes the following:

• (1) Digital Depth Finder | P/N: DS1002C | (1) 2-spade male, (1) female bullet
• (1) Oversized Speedometer | P/N: SE9862A | (1) pitot
• (1) Tachometer | P/N: TCH301A | Gasoline | 4/6/8 cylinder inboard | (4) threaded, (1) spade
• (1) Multifunction Fuel/Volt Meter/Oil/Temperature | P/N: GF0261A | (7) threaded, (1) spade
• (1) Trim | P/N: GP8001A | Mercury engines | (3) threaded, (1) spade

These clear halogen illuminated gauges features a domed lens, silver bezel, black and silver face, red needles, and white graphics. The tachometer and depth finder feature digital screens. The tachometer, speedometer, and multifunction gauge feature the Four Winns logo.

Approximate Measurements:

• Depth Finder | 2 1/4″ Dia. overall across face w/ bezel | 2″ Dia. cutout
• Oversized Speedometer | 4 3/4″ Dia. overall across face w/ bezel | 4 1/4″ Dia. cutout
• Tachometer | 3 3/4″ Dia. overall across face w/ bezel | 3 1/4″ Dia. cutout
• Multifunction | 3 3/4″ Dia. overall across face w/ bezel | 3 1/4″ Dia. cutout
• Trim | 2 1/4″ Dia. overall across face w/ bezel | 2″ Dia. cutout

Ohms range for the trim gauge are as follows:

• UP: 160
• Mid: 38.7
• Down: 10

Mounting brackets included.

Specifications:

• Boat Manufacturer: Four Winns
• Part Manufacturer: Faria
• Color: Silver / Black
• Connections:
• Fuel: Gasoline
• Set Up For: 4/6/8 cylinder inboard
• For Use On: Mercury engines
