Price Cut Faria Boat Multifunction Gauge 961230 | 3 1/4 Inch Ranger NexSysLink

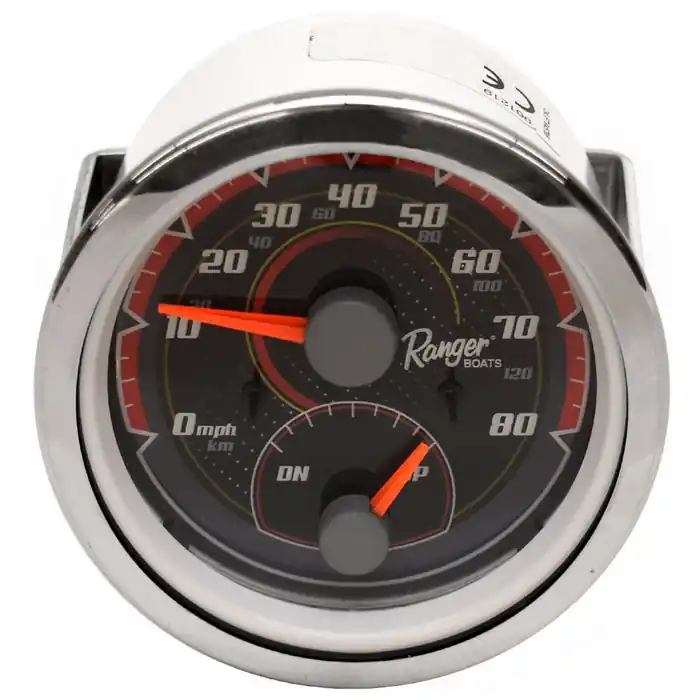

Boat part number 7910613 is a new NexSysLink multifunction 0-80 MPH speedometer and trim gauge from Faria Beede, part number 961230 . Commonly used on Ranger Boats.

This electronically illuminated gauge features a domed lens, black and red colored face, silver colored bezel, white lettering and numerals, red and yellow accents, with orange needles.

Measures approximately 3 3/4″ OD (including bezel) x 3 3/8″ D overall. Requires an approximate 3 3/8″ Dia. cutout. Hosts (1) 14-pin male Deutsch, (1) 6-pin male Deutsch and (2) threaded stud connections. Set up for Mercury and post 2000 Yamaha outboard engines.

Mounting brackets included.

Specifications:

• Boat Manufacturer: Ranger Boats
• Part Manufacturer: Faria Beede
• Part Number: 961230
• Series: NexSysLink
• Colors: Black (Face) | Silver (Bezel)
• Overall Dimensions: 3 3/4″ OD x 3 3/8″ D
• Cutout: 3 3/8″ Dia.
• Connections: (1) 14-Pin Male Deutsch / (1) 6-Pin Male Deutsch / (2) Threaded Stud Connections
• Set up for Mercury and post 2000 Yamaha Outboard Engines
