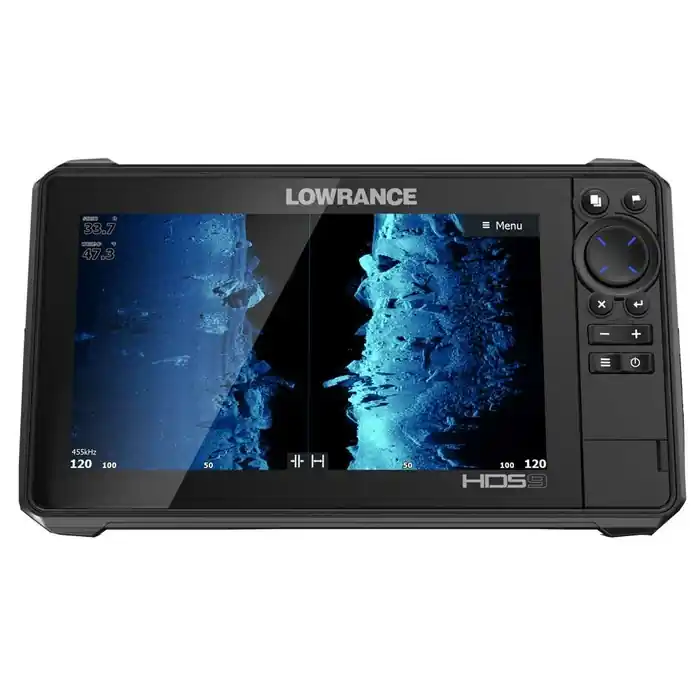

Lowrance Boat Fishfinder Display 000-14421-001 | HDS-9 Live 9 Inch Next Day Delivery

Boat part number 1102886 is a new HDS-9 LIVE fishfinder display from Lowrance, part number 000-14421-001 .

Features:

• Active Imaging 3-in-1 (CHIRP/Side/Down) sonar ready
• Active Imaging 2-in-1 (Side/Down) sonar ready
• StructureScan 3D with Active Imaging enhancements
• LiveSight real-time sonar compatible
• Smartphone notifications
• High-performance dual-core processor
• C-MAP Genesis Live onscreen mapping
• FishReveal Smart Target View
• High-resolution 9-inch SolarMAX HD multi-touch screen with the widest range of viewing angles – viewable even through polarized sunglasses
• Preloaded high-detail C-MAP US Enhanced charts with 1-foot contours on 4,000 lakes
• C-MAP Easy Routing, Navionics Autorouting capability
• Dual-Channel CHIRP – dual sonar-range coverage from the same transducer
• SiriusXM Marine Weather and Audio compatible
• Wireless and Bluetooth connectivity
• Heat Map feature allows anglers to see trends in water temperature changes to quickly target key fishing areas

NOTE: Transducer NOT included. Contains minor crack on edge; see photos.

Technical Specifications:

• Screen Size: 9″
• Screen: High-Resolution SolarMAX HD multi-touch display
• Resolution: 800 x 480
• Backlighting: LED
• Power Output: RMS (PTP): Max 500W RMS
• Operating Voltage: 12 VDC (10VDC MIN – 17 VDC MAX)
• Depth Alarm: Yes
• Sonar Frequencies: 455/800 kHz (StructureScan 3D with Active Imaging, Active Imaging 3-in-1), 40-60kHz, 85-145kHz, 130-210kHz (CHIRP), 50 kHz/83kHz/200kHz (Narrow Band)
• Max Side-Scanning Range: 600 feet per side
• Shallow Alarm: Yes
• Mapping: Preloaded C-MAP US Enhanced charts, plus worldwide reference background map

Specifications:

• Part Manufacturer: Lowrance
• Model: HDS-9 LIVE
• Part Number: 000-14421-001
• UPC: 9420024171882
• Overall Dimensions: 11″ W x 6 1/2″ H x 3″ D

All sales of electronics are final. No returns or refunds.
