Grab Now VDO Boat Fuel Gauge / Sender A2C53406054-K | ViewLine Sterling (Kit)

Boat part number 1080601 is a new ViewLine Sterling series fuel gauge and sender kit from VDO, part number A2C53406054-K . Commonly used on Tiara Yachts, part number 3250015 . May be used on other boats.

This kit includes:

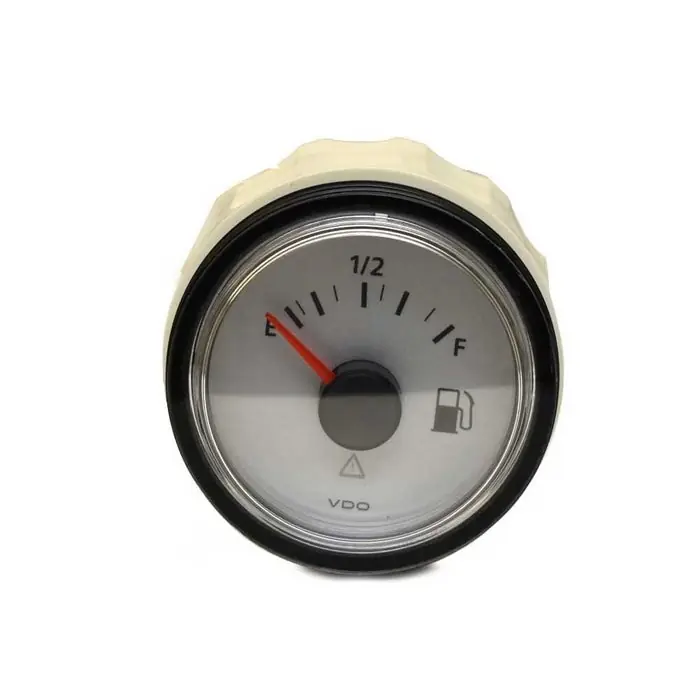

A back mounted fuel gauge, part number A2C53406054-S . Features LED illumination, gray face, orange needle, and black graphics. Measures approximately 2 1/4″ Dia. across the face, x 2 1/2″ D overall. Requires an approximate 2″ Dia. cutout. Has (1) 8-pin Tyco connection, per manufacturer. Mounting bracket and Tyco harness included. Gauge bezel is NOT included.

An ALAS I 6 – 24V adjustable fuel sender kit, part number A2C59510162 . Adjustable arm length sender 6 – 15 3/4″, rated at 3-180 ohms with low fuel warning contact. Mounts with standard SAE 5 hole mounting pattern.

Kit sold as shown in photos.

Specifications:

• Boat Manufacturer: Tiara Yachts
• Part Number: 3250015
• Part Manufacturer: VDO
• Series: ViewLine Sterling
• Part Number: A2C53406054-K
• UPC: 754059055190
• Color: Gray
• Gauge Overall Dimensions: 2 1/4″ Dia. x 2 1/2″ D
• Cutout: 2″ Dia.
• Connection: (1) 8-pin Tyco connection
• Fuel Sender Length: 6 – 15 3/4″
• Output: 3-180 ohms
• Mounts: SAE 5 hole mounting pattern
