Fresh Stock Chaparral Boat Multifunction Gauge 780913SDFB | 4 1/4 Inch Teleflex

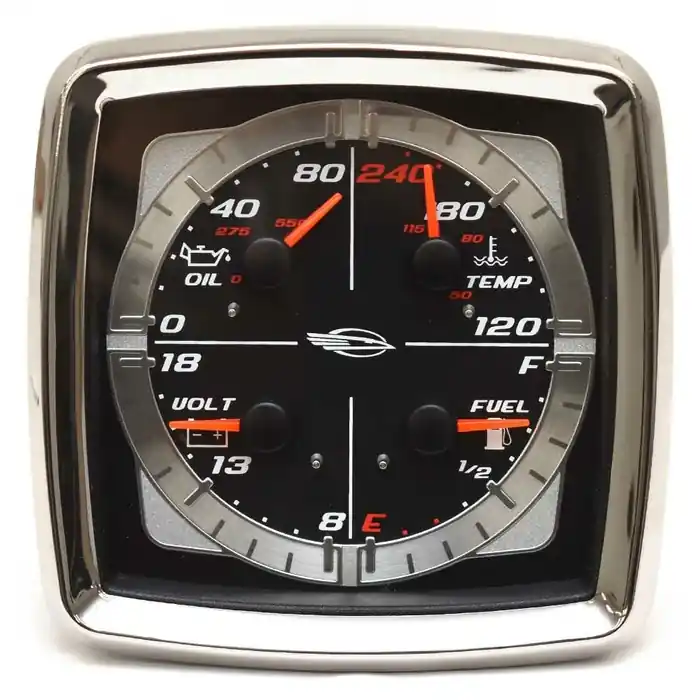

Boat part number 1107325 is a new Chaparral multifunction gauge from Teleflex, part number 780913SDFB .

This electronically illuminated gauge features a flat lens, silver and black colored face, silver colored bezel, red and white lettering and numerals, with silver accents, red needles, and the Chaparral bird logo.

This gauge uses the following functions:

• 80 PSI Oil Pressure
• 120-240 Degree F Temperature
• 8-18 Voltage
• Fuel Level

Measures approximately 4 3/4″ L x 4 3/4″ W (including bezel) x 3 1/2″ D overall. Requires an approximate 4 1/4″ L x 4 1/4″ W cutout. Hosts (4) threaded bolt, (1) 4-pin male Deutsch, and (1) 4-pin female Deutsch connections. Calibrated to an industry standard of 33-240 Ohms.

Mounting bracket not included.

Specifications:

• Boat Manufacturer: Chaparral Boats
• Part Manufacturer: Teleflex
• Part Number: 780913SDFB
• Colors: Silver and Black (Face) | Silver (Bezel)
• Calibration:33-240 Ohms
• Overall Dimensions: 4 3/4″ L x 4 3/4″ W x 3 1/2″ D
• Cutout: 4 1/4″ L x 4 1/4″ W
• Connections: (4) Threaded Bolt | (1) 4-Pin Male Deutsch | (1) 4-Pin Female Deutsch
