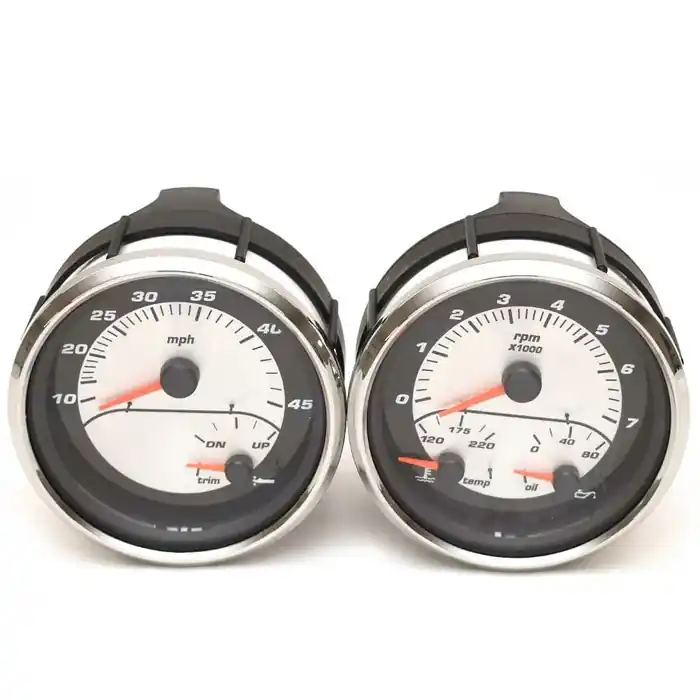

Faria Boat Multifunction Gauges | 4 1/4 Inch BRP/ Suzuki (Set of 2) Premium

Boat part number 7910308 is a new multifunction gauge set of 2 from Faria, part numbers GTC062A and GSC092A .

The gauges feature the following:

• GSC092A- 45 MPH Speedometer and BRP/ Suzuki Trim
• GTC062A- 7000 RPM Tachometer, 220 degree temperature, 80 PSI Oil Pressure

These halogen illuminated gauges features a domed lens, black and spun silver face, silver colored bezel, black and white lettering and numerals with black accents, and red needles.

Each measures approximately 4 3/4″ OD (including bezel) x 4 3/8″ D overall. Requires an approximate 4 1/4″ Dia. cutout.

GSC092A- Hosts (2) threaded bolt, (1) 6-pin Deutsch, and (1) Pitot connection
GTC062A- Hosts (2) threaded bolt and (2) 6-pin Deutsch connections. Tachometer set up for 4/6/8 cylinder and 4/6/8/10/12/20 pole engines.

GTC062A switch settings read as the following:

• 1 – 4 Pole/Cyl
• 2 – 6 Pole/Cyl
• 3 – 8 Pole/Cyl
• 4 – 10 Pole
• 5 – 12 Pole
• 6 – 20 Pole

Mounting brackets included.

Specifications:

• Part Manufacturer: Faria
• Part Numbers: GSC092A | GTC062A
• Colors: Black and Spun Silver (Face) | Silver (Bezel)
• Overall Dimensions: 4 3/4″ OD x 4 3/8″ D
• Cutout: 4 1/4″ Dia.
• Connections:
  • GSC092A: (2) Threaded Bolt | (1) 6-Pin Deutsch | (1) Pitot
  • GTC062A: (2) Threaded Bolt | (2) 6-Pin Deutsch
• Fuel: GAS
• Set up for 4/6/8 Cylinder and 4/6/8/10/12/20 Pole | BRP and Suzuki Engines
