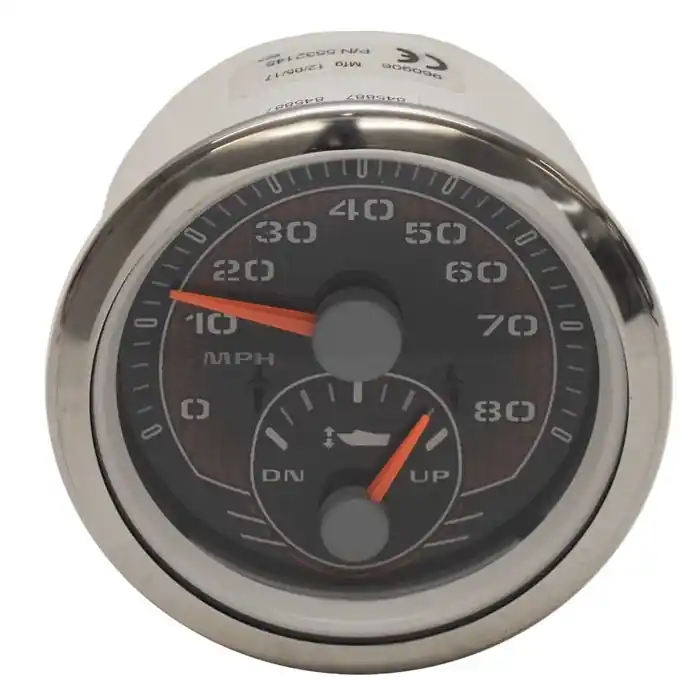

Faria Boat Multifunction Gauge 5532145 | 3 1/4 Inch Ranger Get Yours

Boat part number 7910602 is a new multifunction 0-80 MPH speedometer and trim gauge from Faria, part number 5532145 . Commonly used on Ranger Boats, part number 960906 , but may be used on other boats.

This red halogen illuminated gauge features a domed lens, black and gray colored face, silver colored bezel, white lettering and numerals, red and yellow accents, with orange needles.

Measures approximately 3 3/4″ OD (including bezel) x 3 5/8″ D overall. Requires an approximate 3 1/4″ Dia. cutout. Connects with (1) 8-pin Deutsch and (2) threaded stud terminal connections. Set up for Mercury and post 2000 Yamaha outboard engines.

Note: Mounting bracket NOT included.

Specifications:

• Boat Manufacturer: Ranger Boats
• Part Number: 960906
• Part Manufacturer: Faria
• Part Number: 5532145
• Colors: Black (Face) | Silver (Bezel)
• Overall Dimensions: 3 3/4″ OD x 3 5/8″ D
• Cutout: 3 1/4″ Dia.
• Connections: (1) 8-pin Deutsch / (2) Threaded Stud Terminal Connections
• Set up for: Mercury and post-2000 Yamaha Outboard Engines
