Faria Boat Gauge Set KT0182A | Larson Silver (Set of 5) Buy Today

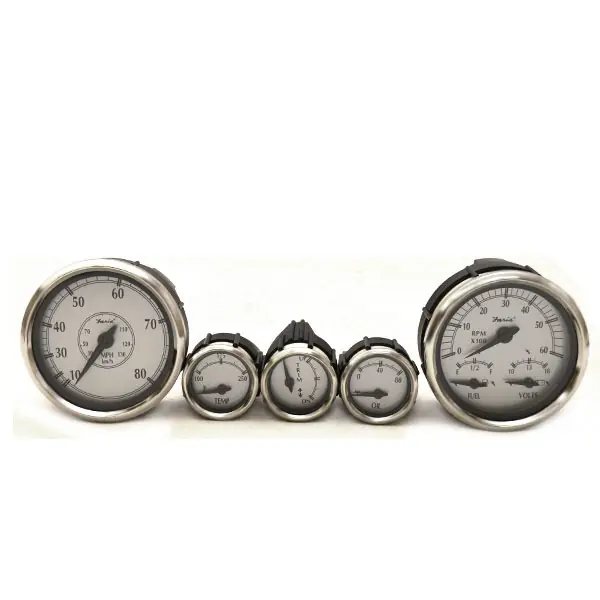

Boat part number 8601640 is a new custom 5 piece gauge set from Faria, part number KT0182A . Commonly used with Larson Boats, 2266-2169 .

These clear halogen bulb illuminated Faria gauges feature a flat lens, silver bezel, gray face, black lettering, numerals, accents, and needle. Mounting brackets included.

The over-sized gauges measures approximately 4 3/4″ Dia. across the face including bezel x 4 1/4″ D overall. Requires 4 3/8″ Dia cutout. The smaller gauges measures approximately 2 1/4″ across face including bezel x 4 1/8″ D. Requires 2″ Dia. cutout.

This set includes the following gauges:

• Multi-function Gauge: Tachometer / Fuel / Volts, part number GTC038D . Features 0 – 6000 RPM, 10 – 18 Volts. Tachometer is set up for 4 / 6 / 8 Cylinders, 4 / 6 / 8 / 10 / 12 Poles. Has a 6 Pin Male Deutsche connection.
• Speedometer Gauge: 10 – 80 MPH, part number SEK708A . Has a pitot connection.
• Trim Gauge: set up for Mercury Engines, part number GBC126B . Has a 4 Pin Male Deutsche connection.
• Oil Pressure Gauge: 0 – 80, part number GBC127B . Has a 4 Pin Male Deutsche connection.
• Temperature Gauge: 100° – 250°, part number GBC128B . Has a 4 Pin Male Deutsche connection.

Specifications:

• Boat Manufacturer: Larson
• Part Number: 2266-2169
• Part Manufacturer: Faria
• Part Number: KT0182A
• Colors: Silver / Black
• Tachometer Set Up For: 4 / 6 / 8 Cylinders, 4 / 6 / 8 / 10 / 12 Poles
• Trim Set Up For: Mercury Engines
