Factory Price Cobalt Boat Dual Amplifier Board 602868 | R30 Roswell 900.6 / 550.2

Boat part number 1094913 is a new fully loaded audio amplifier board for R5 / R7 Cobalt Boats, part number 602868 . Manufactured by Roswell Wake-Air, part number C819-602868 . May be used on other boats.

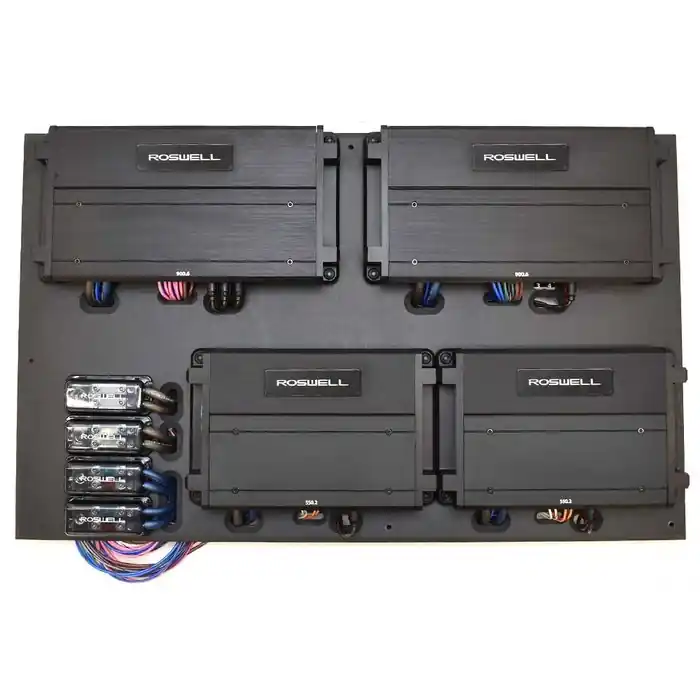

This amp board features (2) pre-wired model 900.6 and (2) model 550.2 Roswell amplifiers. Measures approximately 31″ L x 19″ W overall.

Model 900.6 Amplifier Technical Specifications (per manufacturer):

• Continuous Power (RMS): 4Ω: 100W x 6 / 2Ω: 165W x 6
• Bridged: 4Ω: 300W x 3
• Frequency Response: 10-25 kHz
• Input Sensitivity: 0.2 – 10.0V
• HPF (High Pass Filter): 30Hz – 300Hz
• LPF (Low Pass Filter): 30Hz – 300Hz
• Bass EQ: 0 ~18dB @ 45Hz

Model 550.2 Amplifier Technical Specifications (per manufacturer):

• Continuous Power (RMS): 4Ω: 165W x 2 / 2Ω: 275W x 2
• Bridged: 4Ω: 550W x 1
• Frequency Response: 10-25 kHz
• Input Sensitivity: 0.2 – 10.0V
• HPF (High Pass Filter): 30Hz – 300Hz
• LPF (Low Pass Filter): 30Hz – 300Hz
• Bass EQ: 0 ~18dB @ 45Hz
• Subsonic Filter: 10 Hz – 55 Hz
• Phase Control: 0-180º

Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.

Specifications:

• Boat Manufacturer: Cobalt
• Model: R5 / R7
• Year: Unavailable
• Part Number: 602868
• Part Manufacturer: Roswell Wake-Air
• Part Number: C819-602868
• Color: Black
• Overall Dimensions: 31″ L x 19″ W
• Mounts: (4) 1/8″ Dia. mounting holes
