Express Delivery Nautique Boat Speedometer Gauge SG5015 | Faria 4 3/8 Inch CorrectCraft

Boat part number 7910499 is a new 50 MPH speedometer gauge with build-in depth sounder from Nautique Boats, part number unavailable. Manufactured by Faria, part number SG5015 .

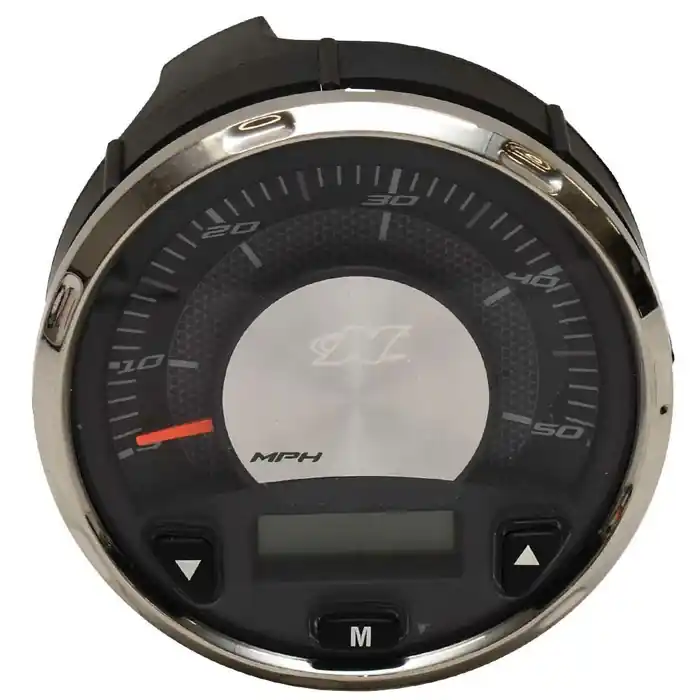

This electrically illuminated gauge features a domed lens, black colored face, silver colored bezel, gray lettering, numerals and accents, with an orange needle. Feature the Nautique “N” logo in the center.

Measures approximately 4 3/4″ Dia. across the face (including bezel) x 3 5/8″ D overall. Requires an approximate 4 3/8″ Dia. cutout. Hosts (1) 4-pin Metri, (1) 6-pin Metri, and (2) threaded bolt connections.
Mounting bracket included.

Per the manufacturer; This gauge operates on proprietary serial data only, so it only works with Correct Craft (Nautique) Gateway systems. The gateway box (not included) drives the gauge.

For more information: https://fariabeede.com/site_manuals/IS0151_C.pdf

Specifications:

• Boat Manufacturer: Nautique Boats
• Year / Model: Unavailable
• Part Manufacturer: Faria
• Part Number: SG5015
• System: CorrectCraft
• Colors: Black (Face) | Silver (Bezel)
• Overall Dimensions: 4 3/4″ Dia. x 3 5/8″ D
• Cutout: 4 3/8″ Dia.
• Connections: (1) 4-Pin Metri | (1) 6-Pin Metri | (2) Threaded Bolt
• Set up for Pleasurecraft GM Engines
