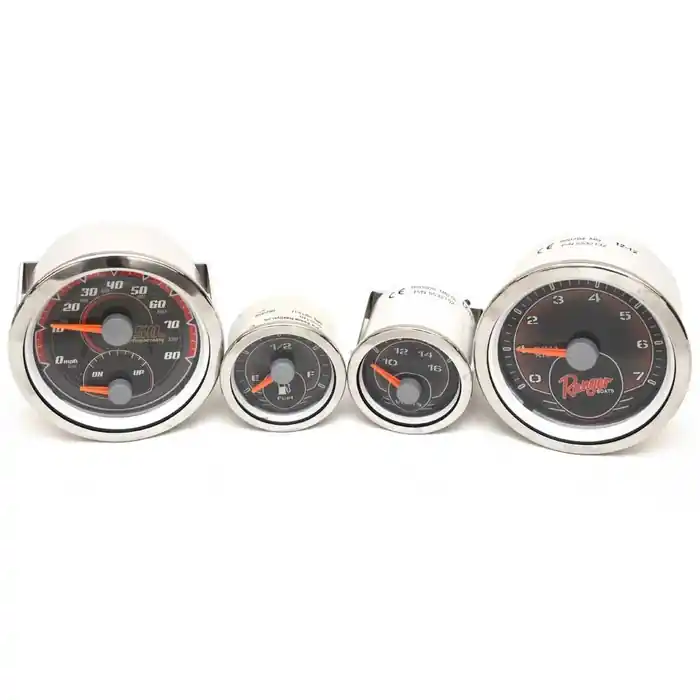

Certified Ranger Boat Gauges | Faria Beede Black / Silver (Set of 4)

Boat part number 1108495 is a new set of (4) gauges for Ranger Boats.

Includes the following gauges:

• (1) Multifunction Speedometer / Trim | PN:310285 | 0-80 MPH | Mercury / Volvo / Yamaha (2001+)
• (1) Tachometer | PN:960794 | 7000 RPM | Gasoline
• (1) Volt | PN:5532152 | 10-16 V
• (1) Fuel | PN:5532140 | 33-240 Ohms

These red-booted halogen illuminated gauges feature domed lenses, black colored faces with red gradients, silver colored bezels, white lettering, numerals and accents, with orange needles.

The speedometer and tachometer measure approximately 3 3/4″ OD (including bezel) x 3 5/8″ D overall. Requires an approximate 3 3/8″ Dia. cutout. Speedometer hosts (1) 7-pin male Deutsch connection and (2) threaded studs. Tachometer hosts (1) 4-pin male Deutsch connection and (2) threaded studs.

The volt gauge measures approximately 2 1/4″ OD (including bezel) x 3 3/8″ D overall. Requires an approximate 2″ Dia. cutout. Hosts (1) 3-pin male Deutsch connection and (2) threaded studs.

The fuel gauge measures approximately 2 1/4″ OD (including bezel) x 2 3/8″ D overall. Requires an approximate 2″ Dia. cutout. Hosts (1) 6-pin male Deutsch connection and (2) threaded studs.

Speedometer and volt gauge include mounting brackets, the other gauges do NOT.

Specifications:

• Boat Manufacturer: Ranger Boats
• Part Manufacturer: Faria Beede
• Colors: Black (Face) | Silver (Bezel)
• Overall Dimensions: 3 3/4″ OD x 3 5/8″ D | 2 1/4″ OD x 3 3/8″ D | 2 1/4″ OD x 2 3/8″ D
• Cutout: 3 3/8″ Dia. | 2″ Dia.
