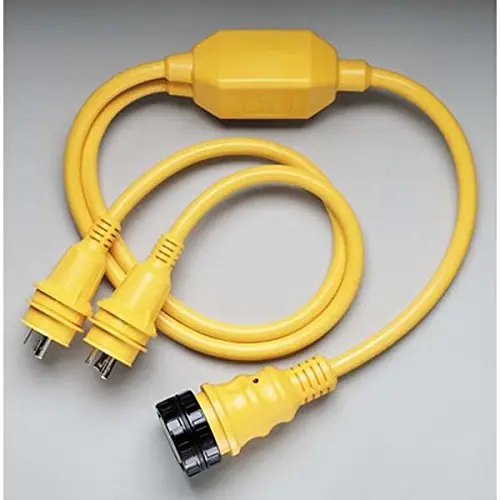

AMRM-RY504-2-30 * Marinco Reverse 2-30A to 50A”Y” Adapter Top Rated

Provides a boat with 50A 125/250V power from two 30A/125V locking receptacles.
The Reverse “Y” Adapter (167RYN) has two male plugs with special power isolation circuitry for added safety. When one plug is hooked up to a receptacle, the circuitry isolates the second one plug.
The reverse “Y” provides 50A 125/250V power when simplest 30A 125V receptacles are to be had.
Note: Reverse “Y” will NOT work with 50A, 125V, 3-wire inlets. Power is provided in both circuits to the 4-wire inlet, however the dockside receptacles limit the present in every circuit to 30A. The 2 30A 125V receptacles should be supplied from a single power source providing from 208V to 250V between them for right kind operation.
Amperage: 30 AMP
